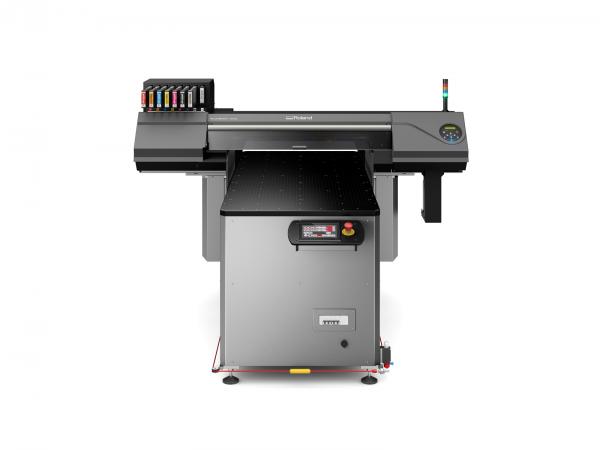

VersaOBJECT CO-i Series UV Flatbed Printers
Take object customization to new heights with the VersaOBJECT CO-i series of UV flatbed printers. Digital UV printing has never been more versatile and the CO-i series is the perfect solution for customizing boards or objects up to 9.5 inches (242 mm) in height and even irregular 3D objects.
- Premium-quality direct-to-object or substrate printing
- Special effect printing for added-value products
- High-volume object customization and personalization
- Available in a size and configuration to suit your business
- New integrated control panel
LIST PRICES
CO-300I-F2:
$54,995.00
CO-640I-F3:
$82,495.00
LEASE PRICES
CO-300I-F2: $1,100 US/month
CO-640I-F3: $1,650 US/month
CO-640I-F3: $1,650 US/month
** For 60 months,
On Approved Credit
| Model | CO-300i-F2 | CO-640i-F3 | |||
| Printing Method | Piezo ink-jet method | ||||
| Attachable objects to be printed on | Width | Max. 30 in. (762 mm ) |
Max. 64 in. (1,625 mm) |
||
| Thickness | Max. 9.5 in. (242 mm) | ||||
| Weight | Max. 220.4 Ib (100 kg) |
||||
| Maximum Printing Width/Length | Max. 29.4 in. × 59.0 in. (749 × 1,500 mm) |
Max. 63.4 in. × 98.4 in. (1,612 × 2,500 mm) |
|||
| Ink | Types | ECO-UV（EUV5） 220 ml cartridge（White） ECO-UV（EUV5） 500 ml cartridge（Cyan, Magenta, Yellow, Black, Red, Orange, Gloss, Primer） |
|||
| Colors | Eight colors (Cyan, Magenta, Yellow, Black, Red, Orange, White, Gloss) Seven colors (Cyan, Magenta, Yellow, Black, Red, Orange, White） Seven colors (Cyan, Magenta, Yellow, Black, Red, Orange, White) and Primer Seven colors (Cyan, Magenta, Yellow, Black, Red, White, Gloss) and Primer Six colors (Cyan, Magenta, Yellow, Black, White, Gloss) and Primer Six colors (Cyan, Magenta, Yellow, Black, White, Gloss） Four colors (Cyan, Magenta, Yellow, Black) |
||||
| Ink-curing unit | Built-in UV-LED lamp | ||||
| Printing resolution (dots per inch) | Max. 1,440 dpi | ||||
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | ||||
| Power-saving Function | Automatic sleep feature | ||||
| Power Requirements | 230V 16A 2P+E | ||||
| Power Consumption | During operation (100% Vacuum) | Approx. 1.80 kW | Approx. 2.90 kW | ||
| Sleep mode | Approx. 0.08 kW | ||||
| Acoustic Noise Level | During operation | 80 dB (A) or less | 90 dB (A) or less | ||
| During Standby | 70 dB (A) or less | 80 dB (A) or less | |||
| Dimensions (Width x Depth x Height) | 76.0 in. × 93.9 in. × 57.9 in. (1,928 mm × 2,384 mm × 1,469 mm) |
110.9 in. × 133.9 in. × 57.9 in. (2,815 mm × 3,399 mm × 1,469 mm) |
|||
| Weight | 1,074 lb. (487 kg) | 1,903 lb. (863 kg) | |||
| Environment | During operation(*1) | Temperature: 68 to 89.6 °F (20 to 32 °C), Humidity: 35 to 80 %RH (no condensation) |
|||
| Not operating | Temperature: 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80 %RH (no condensation) |
||||
| Included Items | Power cord, cleaning liquid, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect), etc. | ||||
1 Operating environment (Use the machine in an operating environment within these ranges.)
